Complete Guide to the Toyota 2ZR-FE / 2ZR-FAE / 2ZR-FXE 1.8L Engine

Toyota’s ZR engine family is among the most reliable and widely used engine series in modern Toyota and Lexus vehicles. The 2ZR series in particular—consisting of the 2ZR-FE, 2ZR-FAE, and 2ZR-FXE 1.8L engines—has earned a reputation for balance between fuel efficiency, durability, and performance.

These engines are found in many Toyota best-sellers such as the Corolla, Prius, Auris, and C-HR, and even in some Lotus sports cars. This article breaks down each engine variant, their specifications, applications, and frequently asked questions.

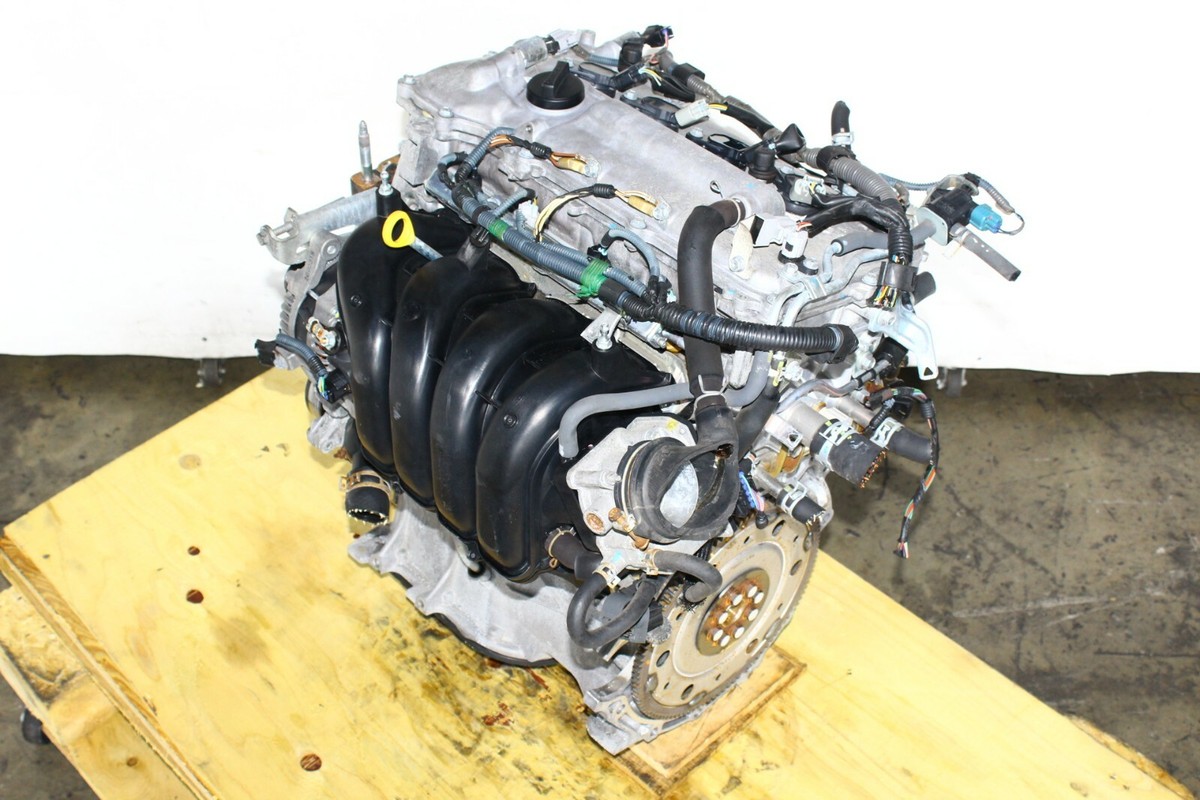

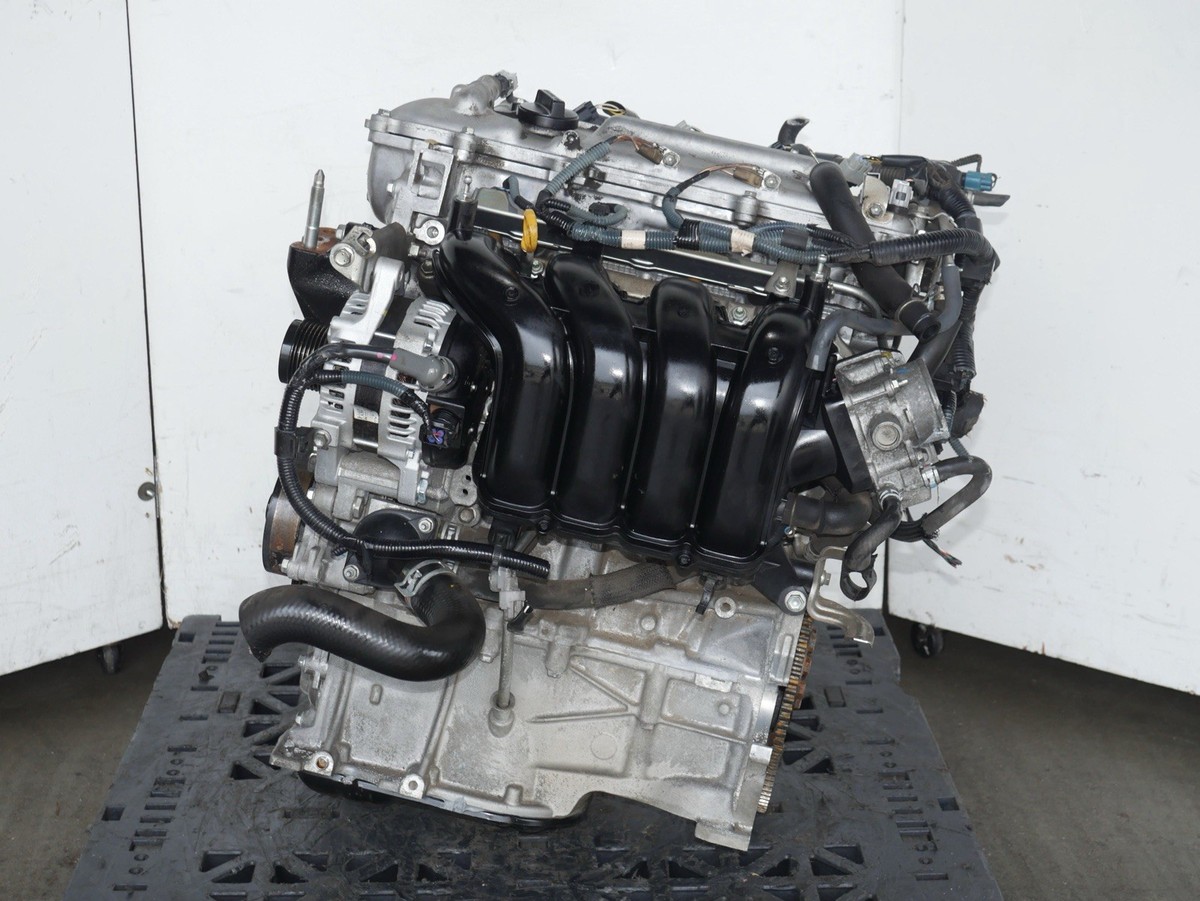

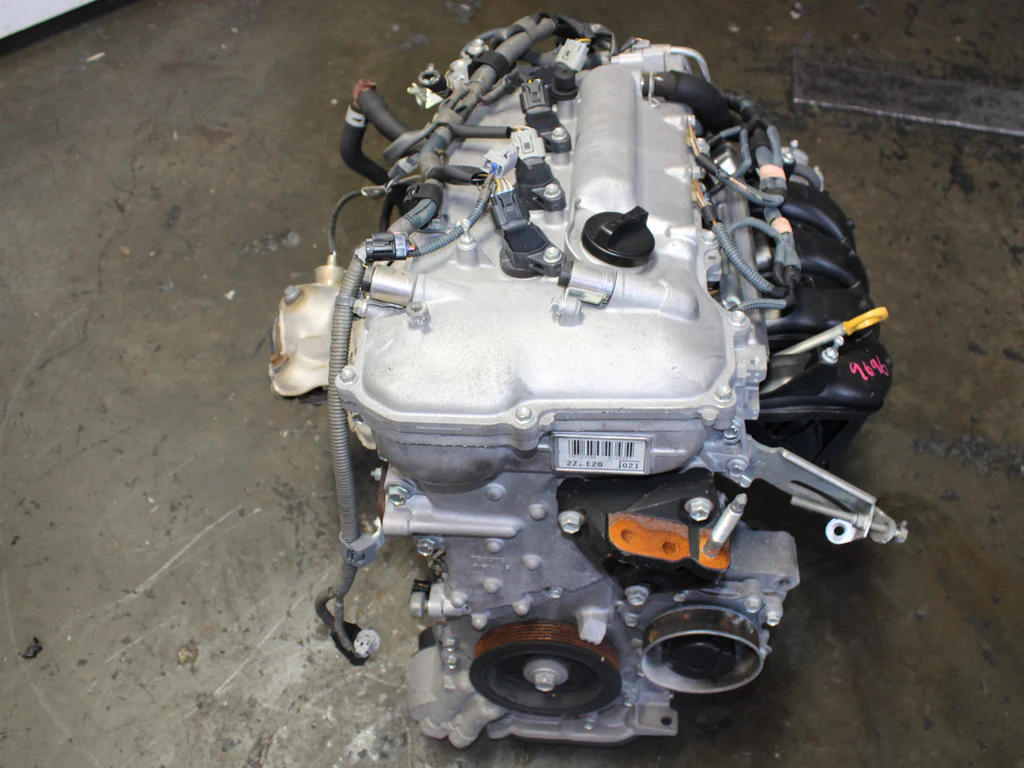

2ZR-FE/FAE/FXE 1.8L Engine

2ZR-FEFAEFXE 1.8L Engine 1

2ZR-FEFAEFXE 1.8L Engine 1

2ZR-FEFAEFXE 1.8L Engine 1

2ZR-FEFAEFXE 1.8L Engine 1

2ZR-FEFAEFXE 1.8L Engine 1

🔧 Technical Specifications

1. 2ZR-FE (Standard 1.8L)

  • Configuration: Inline-4, DOHC, 16-valve

  • Displacement: 1,798 cc (1.8L)

  • Bore × Stroke: 80.5 mm × 88.3 mm

  • Compression Ratio: 10.0:1

  • Fuel System: Sequential Multi-Point Fuel Injection

  • Power Output: ~132–140 hp @ 6,000 rpm

  • Torque: ~173 Nm (128 lb-ft) @ 4,400 rpm

  • Technology: Dual VVT-i (variable valve timing on intake & exhaust)

  • Fuel Type: Regular unleaded

  • Emissions: Euro 4/Euro 5 compliant

2. 2ZR-FAE (Valvematic 1.8L)

  • Configuration: Inline-4, DOHC, 16-valve

  • Displacement: 1,798 cc

  • Bore × Stroke: 80.5 mm × 88.3 mm

  • Compression Ratio: 10.5:1

  • Fuel System: Valvematic (variable valve lift + timing)

  • Power Output: ~142–150 hp @ 6,200 rpm

  • Torque: ~174 Nm (128 lb-ft) @ 4,000 rpm

  • Technology: Valvematic + Dual VVT-i

  • Fuel Type: Regular unleaded

  • Emissions: Euro 5 compliant

  • Improvement: Better fuel economy & mid-range torque compared to FE

2ZR-FEFAEFXE 1.8L Engine 1

2ZR-FEFAEFXE 1.8L Engine 1

3. 2ZR-FXE (Hybrid 1.8L – Atkinson Cycle)

  • Configuration: Inline-4, DOHC, 16-valve, Atkinson Cycle

  • Displacement: 1,798 cc

  • Bore × Stroke: 80.5 mm × 88.3 mm

  • Compression Ratio: 13.0:1

  • Fuel System: Multi-Point Fuel Injection (optimized for hybrid use)

  • Power Output: ~98 hp (engine only), ~120–138 hp (with hybrid system)

  • Torque: ~142 Nm (105 lb-ft) @ 4,000 rpm

  • Technology: Atkinson Cycle + Dual VVT-i + Hybrid Synergy Drive

  • Fuel Type: Regular unleaded

  • Emissions: Extremely low (Euro 6, SULEV)

  • Specialty: Prioritizes fuel efficiency & low emissions over power

🚗 Vehicle Applications

2ZR-FE Applications

  • Toyota Corolla (2007–present, various markets)

  • Toyota Corolla Altis (Asia, Middle East)

  • Toyota Matrix (2009–2014)

  • Toyota Auris (2007–2018)

  • Toyota Avensis (2009–2018)

  • Toyota RAV4 (entry-level models, 2008–2012)

  • Toyota Allion / Premio (Japan)

2ZR-FAE Applications (Valvematic models)

  • Toyota Corolla (Europe, Japan)

  • Toyota Auris (2007–2018)

  • Toyota Avensis (2009–2018)

  • Toyota Wish (Japan)

  • Toyota Verso (Europe)

  • Lotus Elise / Exige / Evora (selected variants)

2ZR-FXE Applications (Hybrid models)

  • Toyota Prius (2009–present)

  • Toyota Prius+ / Prius v

  • Toyota Corolla Hybrid (2019–present)

  • Toyota Auris Hybrid (2010–2018)

  • Toyota C-HR Hybrid (2016–present)

  • Lexus CT200h (2011–2022)

2ZR-FE/FAE/FXE 1.8L Engine

2ZR-FEFAEFXE 1.8L Engine 1

Advantages of the 2ZR Engines

  • Reliability: Proven Toyota engineering with long lifespan (300,000+ km possible with good maintenance).

  • Fuel Efficiency: Especially in the FXE hybrid version, with Prius models achieving 50+ mpg.

  • Low Maintenance Costs: Widely available parts and service.

  • Versatility: Used in compact sedans, hatchbacks, crossovers, and hybrids.

 Common Issues to Watch For

  • Oil consumption (on high-mileage units, especially early 2ZR-FE models).

  • Carbon build-up (more common in Valvematic 2ZR-FAE).

  • EGR valve clogging (mostly in hybrids like Prius).

  • Water pump wear (typical around 100k miles).

Frequently Asked Questions (FAQs)

Q1: Which 2ZR engine is the most fuel-efficient?
👉 The 2ZR-FXE (Atkinson cycle hybrid) is the most fuel-efficient, especially when paired with Toyota’s Hybrid Synergy Drive.

Q2: Is the 2ZR engine reliable?
👉 Yes, with proper maintenance (oil changes, cooling system care), many 2ZR engines exceed 200,000–300,000 km without major issues.

Q3: Can the 2ZR engines be tuned for performance?
👉 The 2ZR-FE and 2ZR-FAE can be mildly tuned (intake, exhaust, ECU remap), but they’re primarily designed for efficiency, not racing. Lotus has used modified 2ZR-FAE engines with superchargers for sports performance.

Q4: What’s the difference between 2ZR-FE and 2ZR-FAE?
👉 The 2ZR-FAE adds Valvematic technology, offering better throttle response, fuel economy, and higher output compared to the 2ZR-FE.

Q5: How often should the 2ZR engine’s oil be changed?
👉 Toyota recommends oil changes every 5,000–10,000 km (3,000–6,000 miles) depending on usage and oil type (synthetic vs. mineral).

Q6: Which vehicles use the hybrid 2ZR-FXE engine?
👉 It’s the powerplant of the Toyota Prius, Corolla Hybrid, C-HR Hybrid, and Lexus CT200h.
