Toyota 2NZ-FE 1.3L Engine – Specs, Applications & FAQs
The Toyota 2NZ-FE engine is a member of Toyota’s widely used NZ engine family, renowned for its balance of efficiency, reliability, and compact design. Introduced in the late 1990s, the 2NZ-FE powered many subcompact and compact Toyota vehicles, becoming a popular choice in markets where fuel economy and affordability were key.
This 1.3-liter inline-four petrol engine is built with Toyota’s well-known engineering precision and has served millions of drivers worldwide as a dependable, low-maintenance power unit.

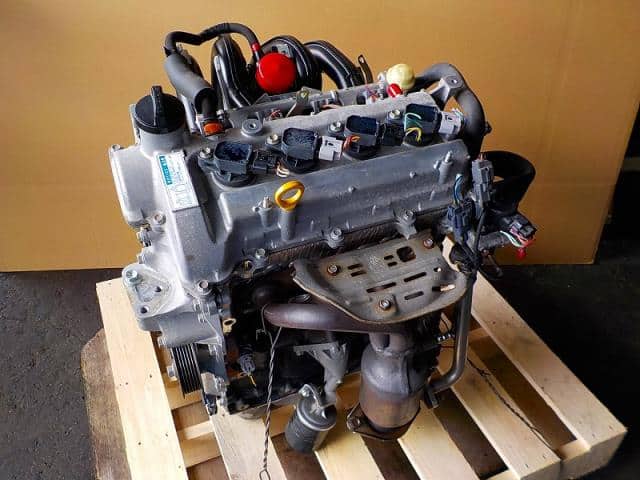

2NZ-FE 1.3L Engine
2NZ-FE 1.3L Engine
Specifications of the Toyota 2NZ-FE Engine
| Parameter | Details |
|---|---|
| Engine Code | 2NZ-FE |
| Production Years | 1999 – 2012 |
| Manufacturer | Toyota Motor Corporation |
| Engine Family | NZ |
| Configuration | Inline-4 |
| Displacement | 1,298 cc (1.3L) |
| Bore x Stroke | 75.0 mm × 73.5 mm |
| Compression Ratio | 10.5:1 |
| Valvetrain | DOHC, 16-valve with VVT-i (Variable Valve Timing – Intelligent) |
| Fuel System | Multi-Point Fuel Injection (MPFI) |
| Aspiration | Naturally Aspirated |
| Maximum Power Output | 85–89 hp (63–66 kW) @ 6,000 rpm |
| Maximum Torque | 121 Nm (89 lb-ft) @ 4,400 rpm |
| Fuel Type | Petrol (Gasoline) |
| Cooling System | Water-cooled |
| Emissions Standard | Euro 3 / Euro 4 (varied by market) |
| Transmission Pairing | 5-speed manual / 4-speed automatic |
| Average Fuel Economy | 14–18 km/l (depending on vehicle and driving conditions) |
| Weight | ~95–105 kg (engine only) |
Key Features of the 2NZ-FE Engine
-
Fuel Efficiency – Designed for economy, making it ideal for city driving.
-
VVT-i Technology – Improves torque delivery and fuel economy across RPM ranges.
-
Compact Size – Lightweight, small displacement, making it easy to maintain and reliable in urban-use vehicles.
-
Durability – Known for long service life when maintained with regular oil changes and timing chain inspections.
-
Low Emissions – Meets Euro 3/4 standards in most markets, contributing to eco-friendliness.
Applications – Vehicles Powered by the 2NZ-FE
The Toyota 2NZ-FE 1.3L engine was installed in several Toyota small and mid-sized cars, especially in Asian, European, and Middle Eastern markets. Some notable vehicles include:
-
Toyota Vios (XP40, XP90) – Popular subcompact sedan in Southeast Asia.
-
Toyota Yaris / Echo (XP10, XP90) – Hatchback and sedan models in Europe, Asia, and Australia.
-
Toyota Platz – Compact sedan primarily for Japanese and export markets.
-
Toyota Belta (XP90) – Subcompact sedan, successor to the Platz in some markets.
-
Toyota Probox / Succeed (select models) – Light commercial wagons.
-
Toyota Porte – Compact MPV designed for urban use.
-
Toyota Corolla (select Asian trims) – Lower-displacement Corolla models in some markets.
Common Issues and Reliability
While the 2NZ-FE is known for its durability, some common issues reported include:
-
Timing Chain Noise – Stretching or wear can cause rattling if oil changes are neglected.
-
Oil Consumption – In higher mileage engines, due to worn piston rings or valve seals.
-
Carbon Build-up – Can affect fuel injectors and throttle body.
Overall, with proper care, this engine can easily exceed 300,000 km (186,000 miles) without major overhauls.
2NZ-FE 1.3L Engine
Frequently Asked Questions (FAQs)
1. Is the Toyota 2NZ-FE a reliable engine?
Yes, it is one of Toyota’s most reliable small-displacement engines. With regular maintenance, it can last well beyond 250,000–300,000 km.
2. Does the 2NZ-FE use a timing belt or chain?
It uses a timing chain, which generally lasts longer than a belt but may require replacement if stretched or noisy.
3. What is the average fuel consumption of the 2NZ-FE?
Fuel economy typically ranges from 14 to 18 km/l depending on vehicle type, driving habits, and transmission.
4. Can the 2NZ-FE engine be turbocharged?
While it’s possible to turbocharge the 2NZ-FE, it’s not recommended without internal upgrades, as the engine was designed for efficiency rather than performance.
5. Which oil grade is recommended for the 2NZ-FE?
Toyota generally recommends 5W-30 or 10W-30 depending on climate conditions.
6. What vehicles commonly came with this engine?
Most commonly, the Toyota Vios, Yaris, Platz, and Belta featured the 2NZ-FE engine.
Conclusion
The Toyota 2NZ-FE 1.3L engine is a well-balanced power unit designed with fuel efficiency, compactness, and reliability in mind. While not a performance powerhouse, it remains a cost-effective and dependable choice for drivers in urban and suburban settings. Its wide use across Toyota’s subcompact lineup proves its enduring reputation as one of Toyota’s most successful small engines.
