The 1VD-FTV 4.5L V8 Diesel Engine: Specs, Applications, and FAQs
The 1VD-FTV 4.5L V8 D Engine, is a 4.5-liter V8 turbo-diesel engine, renowned for its power, durability, and off-road reliability. Introduced in 2007, this engine has powered some of Toyota’s most rugged and heavy-duty vehicles, especially the Land Cruiser series. With advanced common-rail direct injection and turbocharging, the 1VD-FTV is designed for heavy loads, long distances, and extreme environments.
Specifications of the Toyota 1VD-FTV Engine
| Feature | Specification |
|---|---|
| Engine Code | 1VD-FTV |
| Configuration | V8, Turbo Diesel, DOHC |
| Displacement | 4.5L (4461 cc) |
| Bore x Stroke | 86.0 mm × 96.0 mm |
| Compression Ratio | 16.8:1 |
| Fuel System | Common-Rail Direct Injection |
| Induction | Single Turbo (some versions Twin-Turbo) |
| Max Power (single-turbo) | ~202 hp (151 kW) @ 3,400 rpm |
| Max Power (twin-turbo) | ~268 hp (200 kW) @ 3,600 rpm |
| Max Torque (single-turbo) | 430 Nm (317 lb-ft) @ 1,200–3,200 rpm |
| Max Torque (twin-turbo) | 650–700 Nm (479–516 lb-ft) @ 1,600–2,600 rpm |
| Valvetrain | 32-valve, DOHC |
| Turbocharger | VGT (Variable Geometry Turbocharger) |
| Emission Standard | Euro IV – Euro VI (depending on region) |
| Cooling System | Water-cooled |
| Fuel Type | Diesel |
| Oil Capacity | ~9.2 liters |
| Timing System | Timing Belt + Gear Drive |
| Weight | Approx. 360 kg (dry) |

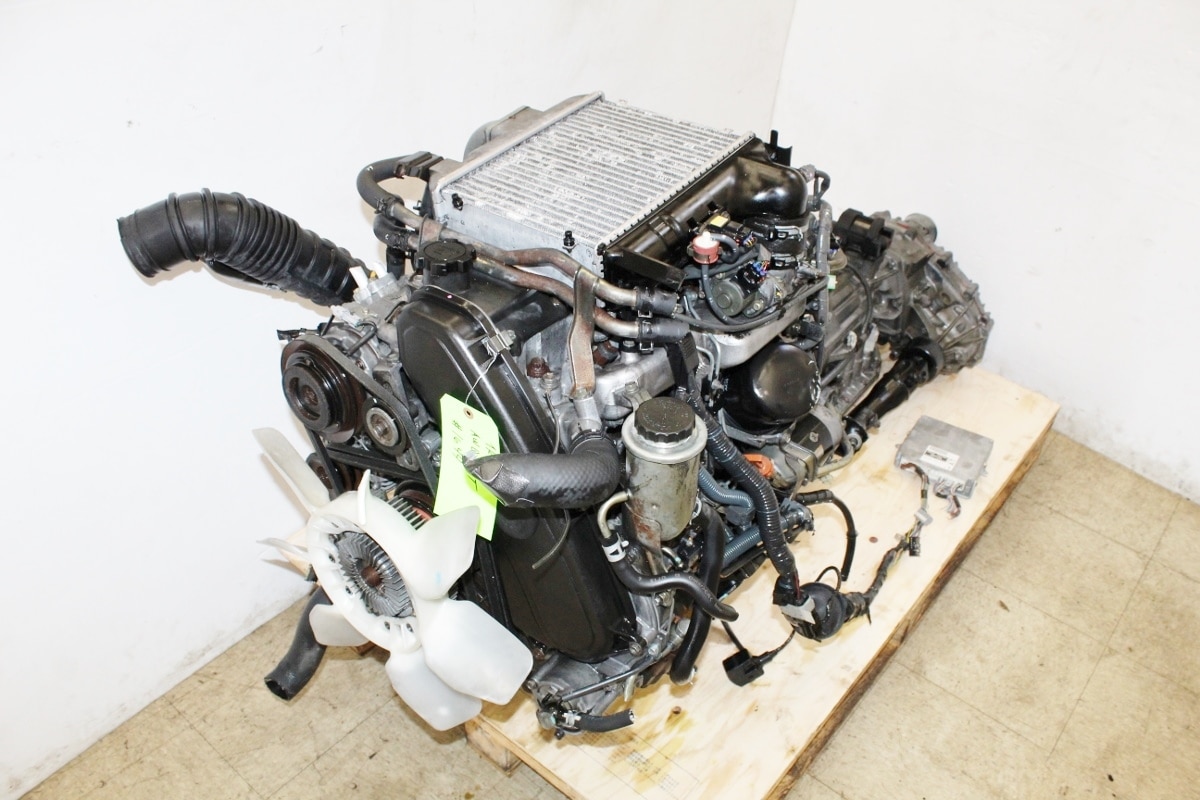

1VD-FTV 4.5L V8 D Engine
Vehicles Equipped with the 1VD-FTV Engine
The 1VD-FTV was primarily developed for Toyota’s Land Cruiser lineup but also found applications in utility and commercial vehicles.
-
Toyota Land Cruiser 70 Series (VDJ76, VDJ78, VDJ79)
-
Toyota Land Cruiser 200 Series (VDJ200)
-
Toyota Land Cruiser 300 Series (early variants in some markets)
-
Toyota Tundra (export/conversion models)
-
Military and armored vehicles (based on Land Cruiser platforms)
-
Mining and expedition vehicles (modified for durability and load handling)
This engine’s torque-heavy output makes it ideal for towing, off-road expeditions, and utility fleets.
Key Features
-
High Durability – Built for extreme climates, desert heat, and rugged terrains.
-
Fuel Efficiency (for its size) – Advanced common-rail injection optimizes fuel use.
-
High Torque at Low RPM – Perfect for off-roading, heavy towing, and carrying loads.
-
Turbocharging Options – Single and twin-turbo setups depending on vehicle variant.
-
Long Service Life – Known to last well over 500,000 km with proper maintenance.
Frequently Asked Questions (FAQs)
1. Is the 1VD-FTV a reliable engine?
Yes, it’s one of Toyota’s most reliable diesel engines. With proper maintenance, it can easily exceed 500,000 km. It’s built for harsh environments and heavy-duty use.
2. What vehicles use the 1VD-FTV engine?
The engine is primarily found in Toyota Land Cruiser models (70, 200, and early 300 series), as well as some special-purpose and military vehicles.
3. What is the difference between the single-turbo and twin-turbo versions?
-
Single-turbo: More common in Land Cruiser 70 Series; produces around 202 hp / 430 Nm.
-
Twin-turbo: Found in Land Cruiser 200 Series; produces up to 268 hp / 650–700 Nm, giving stronger acceleration and towing power.
4. What type of fuel does the 1VD-FTV use?
It runs on diesel, with variations depending on regional fuel standards. Low-sulfur diesel is recommended for longevity.
5. What are common issues with the 1VD-FTV engine?
-
EGR (Exhaust Gas Recirculation) clogging.
-
Turbo wear in high-mileage units.
-
Injector problems due to poor fuel quality.
-
Timing belt replacements (every ~150,000 km).
6. Is the 1VD-FTV suitable for modifications?
Yes. Many owners upgrade the turbo, intercooler, and ECU for more power. With proper tuning, the engine can produce 350–400 hp reliably.
7. What makes the 1VD-FTV popular in Africa, the Middle East, and Australia?
Its durability, ability to run in extreme conditions, and unmatched torque make it a favorite for mining companies, military fleets, and off-road enthusiasts.
